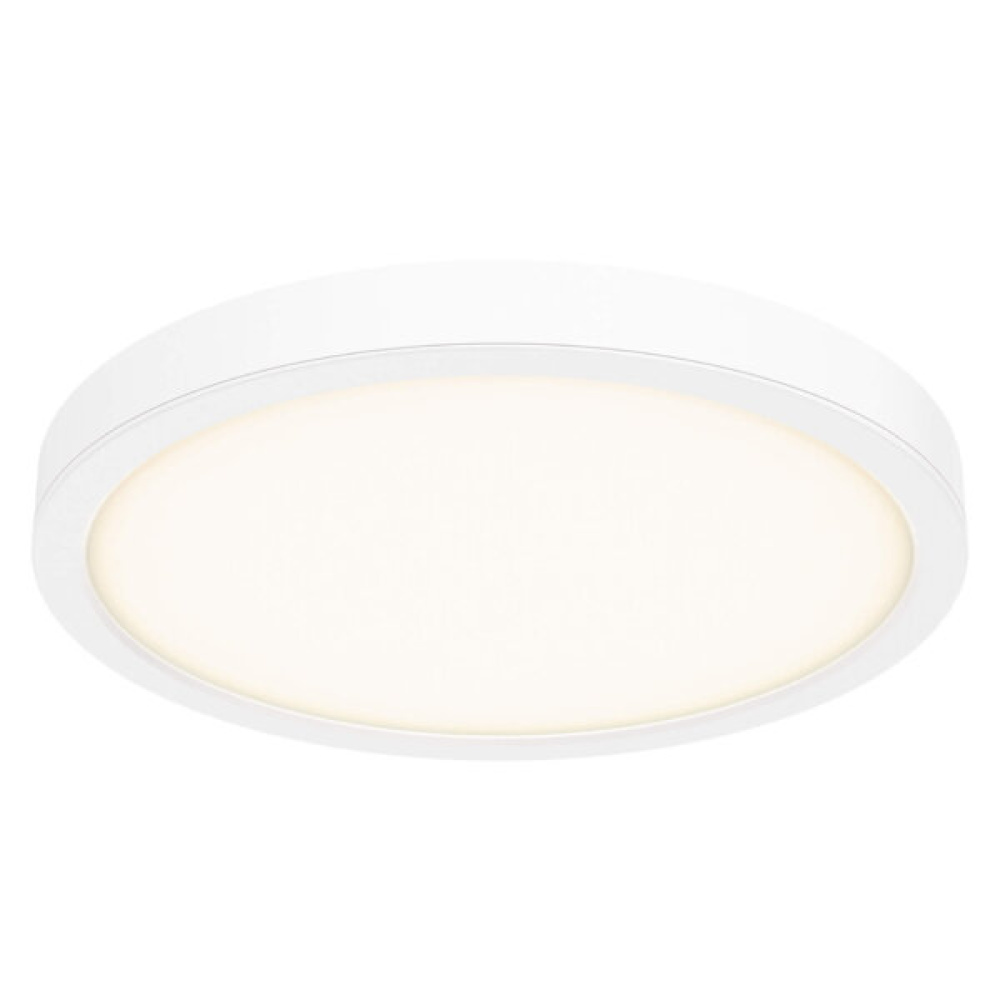

Round Flush Mount, universal 120V-347V, 0-10V dimming
Image may not reflect selected features
/vendors/776/large/cfledr18-cc-wh-600x600.jpg
additional image
additional image
Round Flush Mount, universal 120V-347V, 0-10V dimming (6Y9E5)
Our LED flush mounts incorporate Edge-Lit technology, eliminating hot spots or glare. Can be installed inside or outside and offer 5 switch-selectable CCT settings – 2700 K, 3000 K, 3500 K, 4000 K, and 5000 K
Downloads
Product Specification
Item #
6Y9E5
Dimensions
Height: 1.00"
Width: 18.00"
Length: 18.00"
Additional product details
Finish
White
Option
Title 24 , Outdoor , Wet Rated , Prop 65
Category
Ceiling
Subcategory
Flushmount
Finish
White
Option
Outdoor , Prop 65 , Title 24
Family
Delta
Voltage
120 V/ 277 V/ 347 V
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
2.25
Ship Carton Length
18.25
Ship Carton Width
18
Ship Weight
6.6
Warranty
5 Years Limited
Beam Angle
110
Bulb CRI
90
Country of Origin
China
Delivered Lumens
2974
Dimmer Type
0-10V
Indoor
Yes
IP Rating
IP44
Lens Material
PC
Location Rating
Wet Rated
Max Wattage
30 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
20.47
Shipping Master Length
20.28
Shipping Master Quantity
5
Shipping Master Weight
35
Shipping Master Width
12.6
Title 24
Yes
Wiring
Hardwired


Other Details:
  • Frosted lens
  • Integrated dimmable driver
  • Over 50,000 hours of service life
  • Smooth 360° wide spread
  • Suitable for outdoor locations on covered ceilings only
