Round regressed recessed light - High Power - universal 120V-347V, 0-10V dimming
Image may not reflect selected features

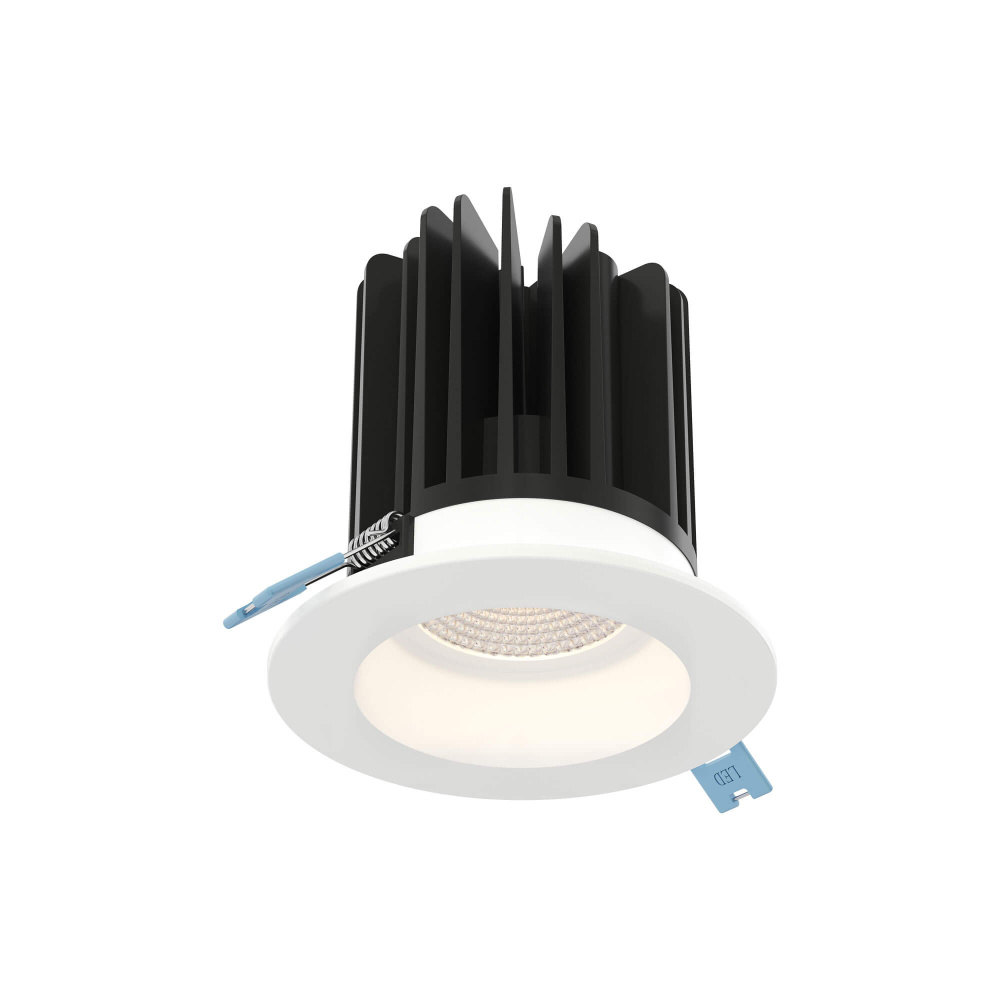

/vendors/776/large/rgr4hp-cc-wh_01.jpg
additional image
additional image
Round regressed recessed light - High Power - universal 120V-347V, 0-10V dimming (6Y8F9)
When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.
Downloads
Product Specification
Item #
6Y8F9
Dimensions
Height: 3.93"
Width: 4.56"
Length: 4.56"
Additional product details
Finish
White
Option
Title 24 , Outdoor , Wet Rated , Prop 65
Category
Recessed
Subcategory
Directional
Finish
White
Option
Outdoor , Prop 65 , Title 24
Family
RGR
Voltage
120 V/ 277 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
4.5
Ship Carton Length
7.15
Ship Carton Width
5.15
Ship Weight
1.8
Warranty
5 Years Limited
Weight
1.5
Air-Tight (ASTM E283--4)
Yes
Beam Angle
40
Bulb CRI
90
Country of Origin
China
Delivered Lumens
1560
Dimmer Type
0-10V Dimming
Energy Star
No
IC Certification
Yes
Indoor
Yes
IP Rating
IP44
Lens Material
Acrylic
Location Rating
Wet Rated
Max Wattage
20 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
10
Shipping Master Length
22
Shipping Master Quantity
20
Shipping Master Width
16.15
Title 24
Yes
Wiring
Hardwired


Other Details:
  • 40° beam angle
  • Air-tight certified as per ASTM E283-04
  • IC certification (suitable for direct contact with insulation)
  • Suitable for wet locations
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
